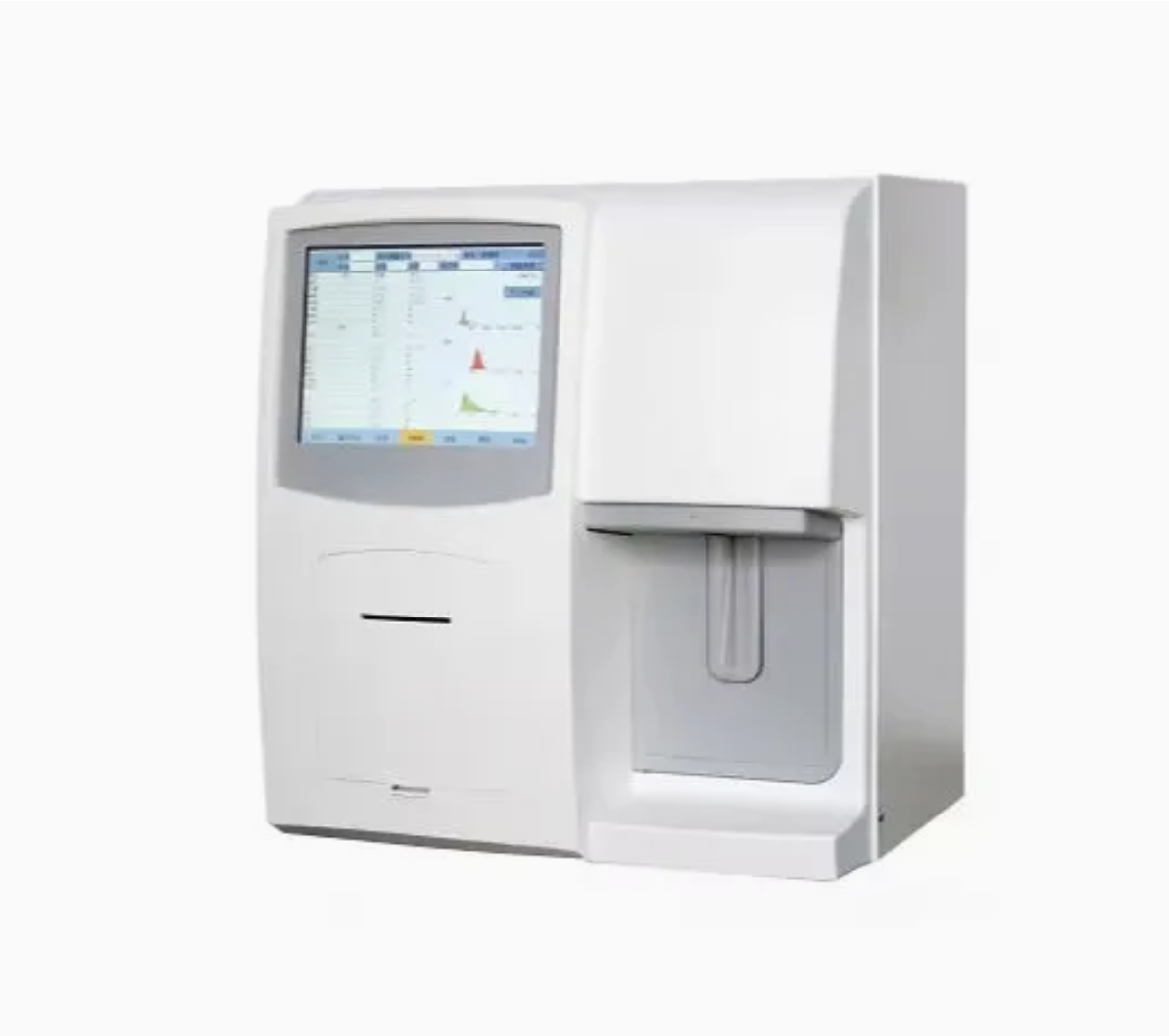

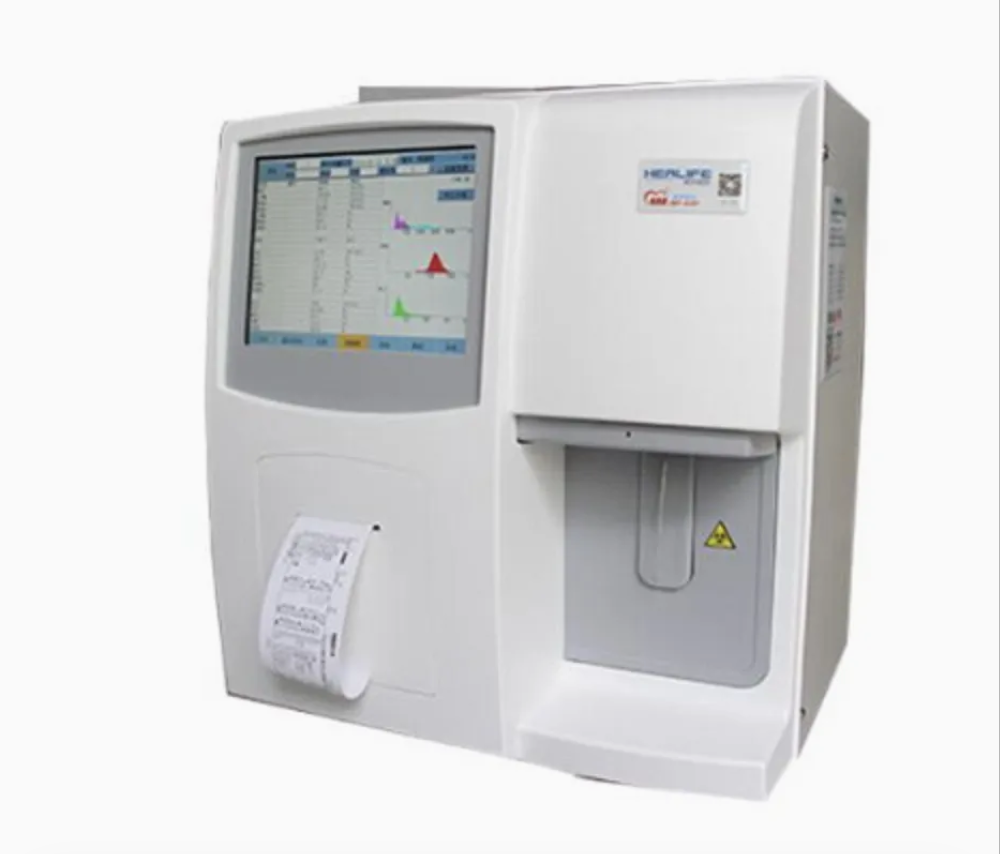

Rayland Advanced Automatic Hematology Analyzer with 8.4'' Display

Rayland Advanced Automatic Hematology Analyzer is a professional intelligent blood testing device for clinical laboratories and physical examination centers, featuring 8.4'' touch screen, WBC three-part grouping, 23 detection parameters, cyanide-free technology, ≥60 samples/hour speed, and strong adaptability to deliver accurate and efficient routine blood testing solutions.

Core Highlights

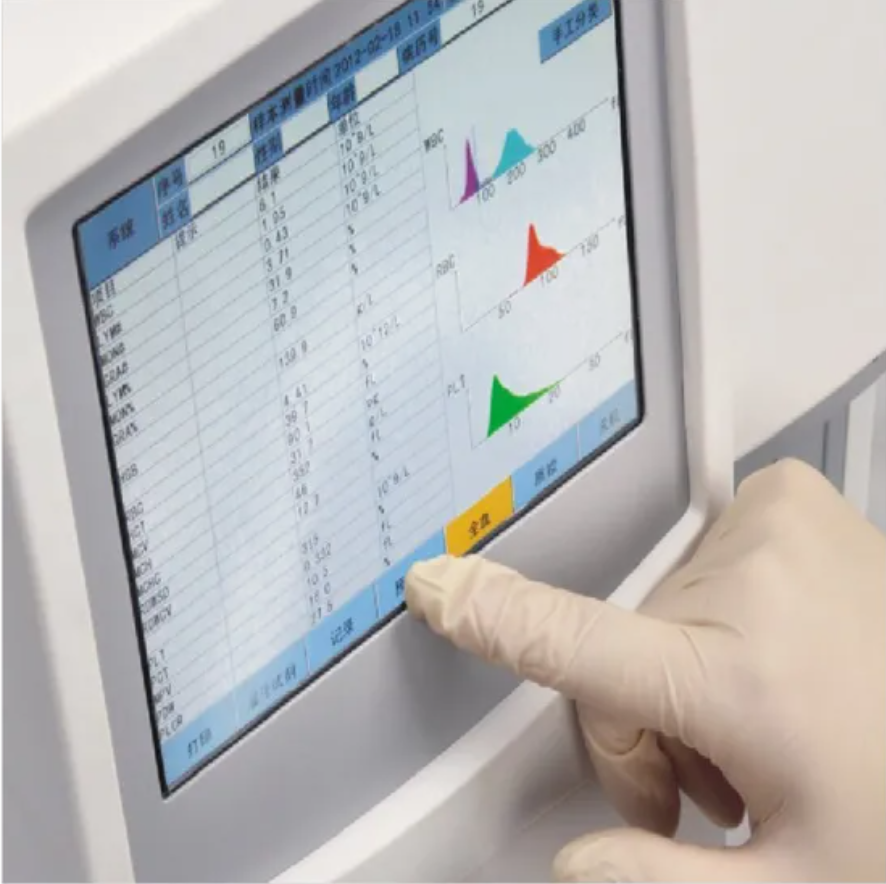

Intuitive Operation: 8.4'' touch screen LCD with full Chinese interface, supporting mouse/keyboard and graphical buttons for easy use.

Comprehensive Detection: WBC three-part grouping and 23 core parameters + 3 histograms, covering all routine blood testing needs.

High Efficiency: Detection speed ≥60 samples/hour, with automatic dilution and reverse flushing functions to reduce manual operations.

Environmentally Friendly: Cyanide-free hemoglobin testing technology, complying with modern medical environmental protection standards.

Reliable Accuracy: Repetitive error ≤2.0%, cross-contamination rate <0.5%, with automatic calibration to ensure stable results.

Flexible Adaptability: Supports venous blood, peripheral blood sampling; compatible with external workstations for report archiving.

Technical Specifications

Parameter	Details
Working Principle	Electrical impedance method (hemoglobin free cyanide, environmentally friendly)
Test Parameters	WBC, LYMPH%, MID%, GRAN%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, etc. (23 total)
Detection Speed	≥60 samples/hour
Sample Usage	Anticoagulated whole blood (venous blood ≥ 9.6 μl, peripheral blood ≥ 20 μl)
Repetitive Error	WBC ≤2.0%, RBC ≤1.5%, HGB ≤1.5%, HCT ≤1.5%, MCV ≤1.0%
Linear Range	RBC 0.0-9.99×10¹²/L, HGB 0.0-300g/L, HCT 0.0-100.0%, MCV 0.0-160.0fL
Cross-contamination Rate	RBC, WBC, HGB <0.5%
Display & Operation	8.4'' touch screen LCD; full Chinese color interface; graphical buttons, mouse & keyboard support
Data Storage	Over 10,000 samples (infinitely expandable via USB)
Calibration Function	Independent automatic calibration for three measurement modes

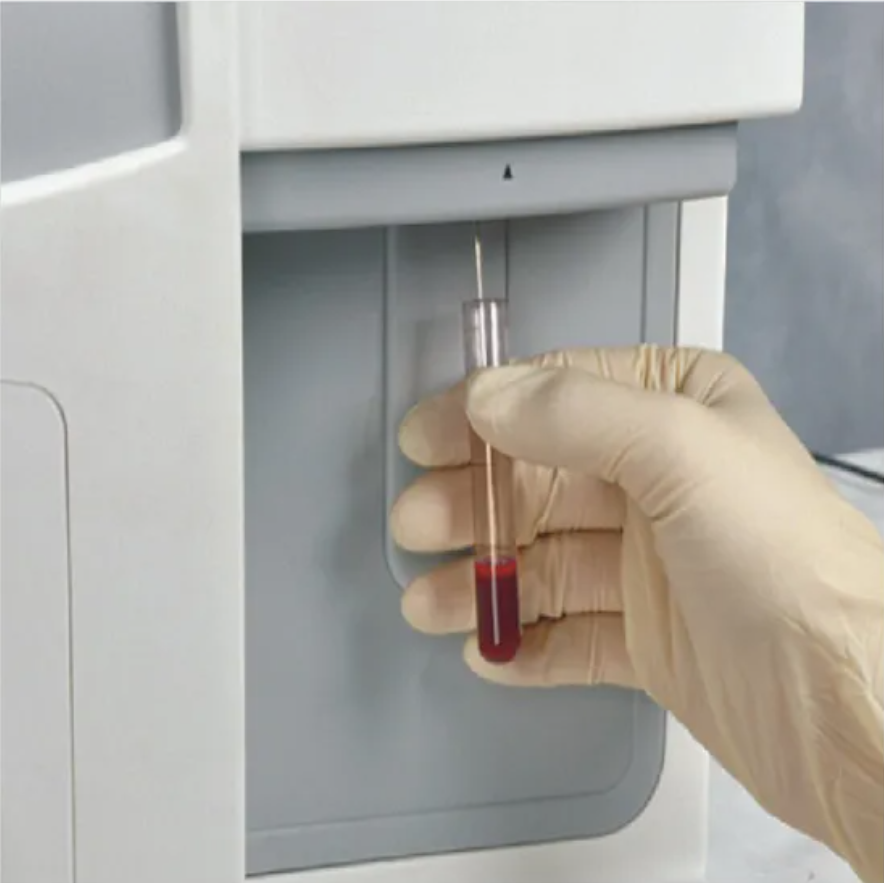

Sample Injection Methods	Venous blood, anticoagulant peripheral blood, diluted peripheral blood
Additional Functions	Automatic dilution, hemolytic agent addition, reverse flushing
Power Supply	220(1±10%)V, 50(1±1)Hz
Ambient Temperature	10℃ - 35℃
Relative Humidity	10% - 90%
Place of Origin	China

Application Scenarios

Clinical laboratories: Routine blood testing for general hospitals, community hospitals, and township health centers.

Physical examination centers: Large-scale health check-up blood analysis and data archiving.

Medical research institutions: Hematological research, sample detection, and data collection.

Product Description

Material:

High-quality medical-grade ABS plastic (shell) + precision metal components (internal core) + scratch-resistant LCD screen

Color:

White

TYPE:

Fully Automatic Hematology Analyzer (WBC three-part grouping, 23 parameters)

DESIGN:

8.4'' high-definition touch screen; full English/Chinese operation interface; graphical button layout; compact integrated structure; easy-to-clean surface

STORAGE INSTRUCTIONS:

Store in a dry, well-ventilated warehouse with ambient temperature 5℃-40℃ and relative humidity 5%-90%; avoid direct sunlight, high temperature, high humidity, and corrosive gas environments; prevent collision, extrusion, and sharp object scratches; keep the device in original packaging if not used for a long time; ensure the packaging is intact to avoid dust and moisture intrusion; store away from flammable and explosive materials; check the device integrity and perform calibration before use after long-term storage.
