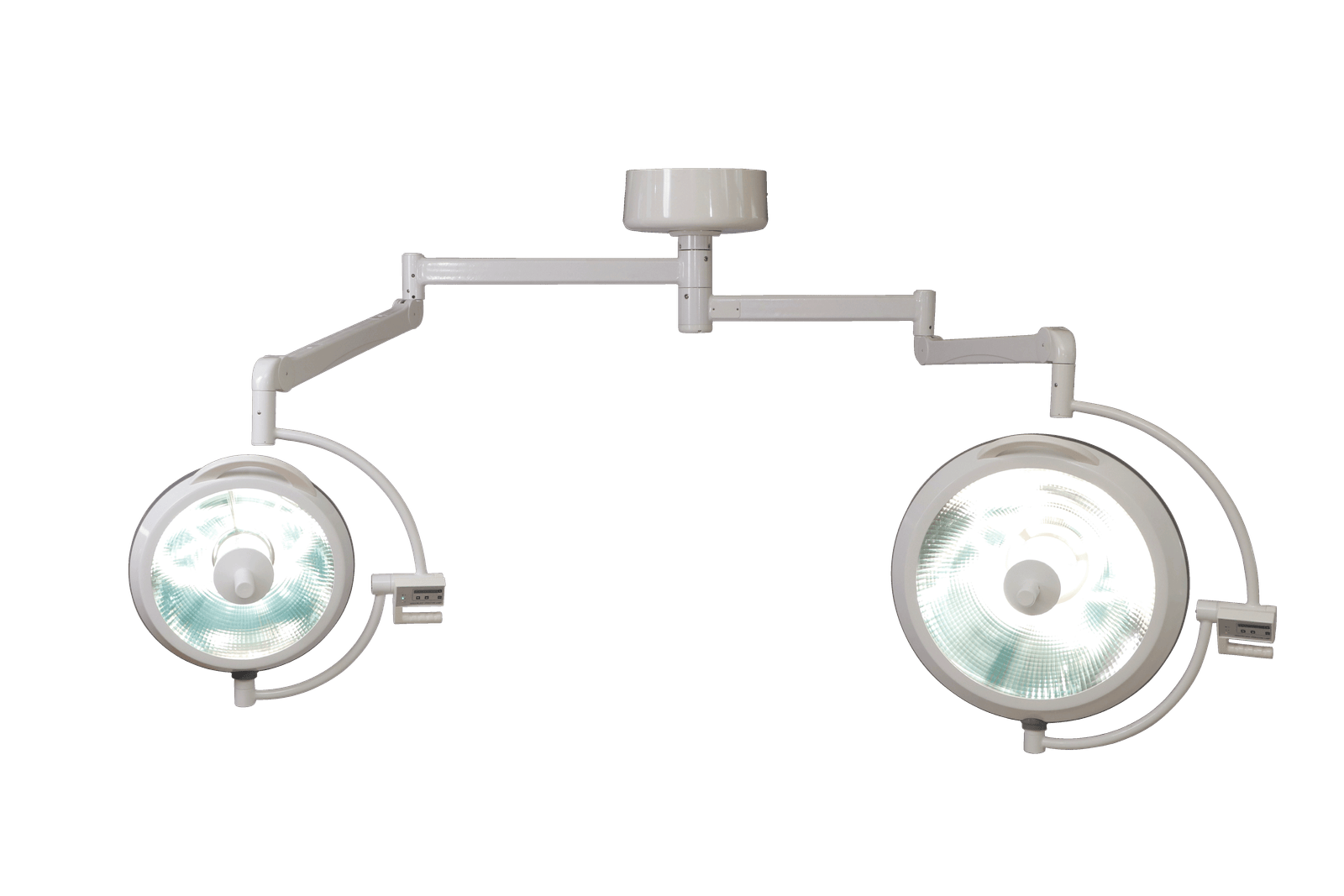

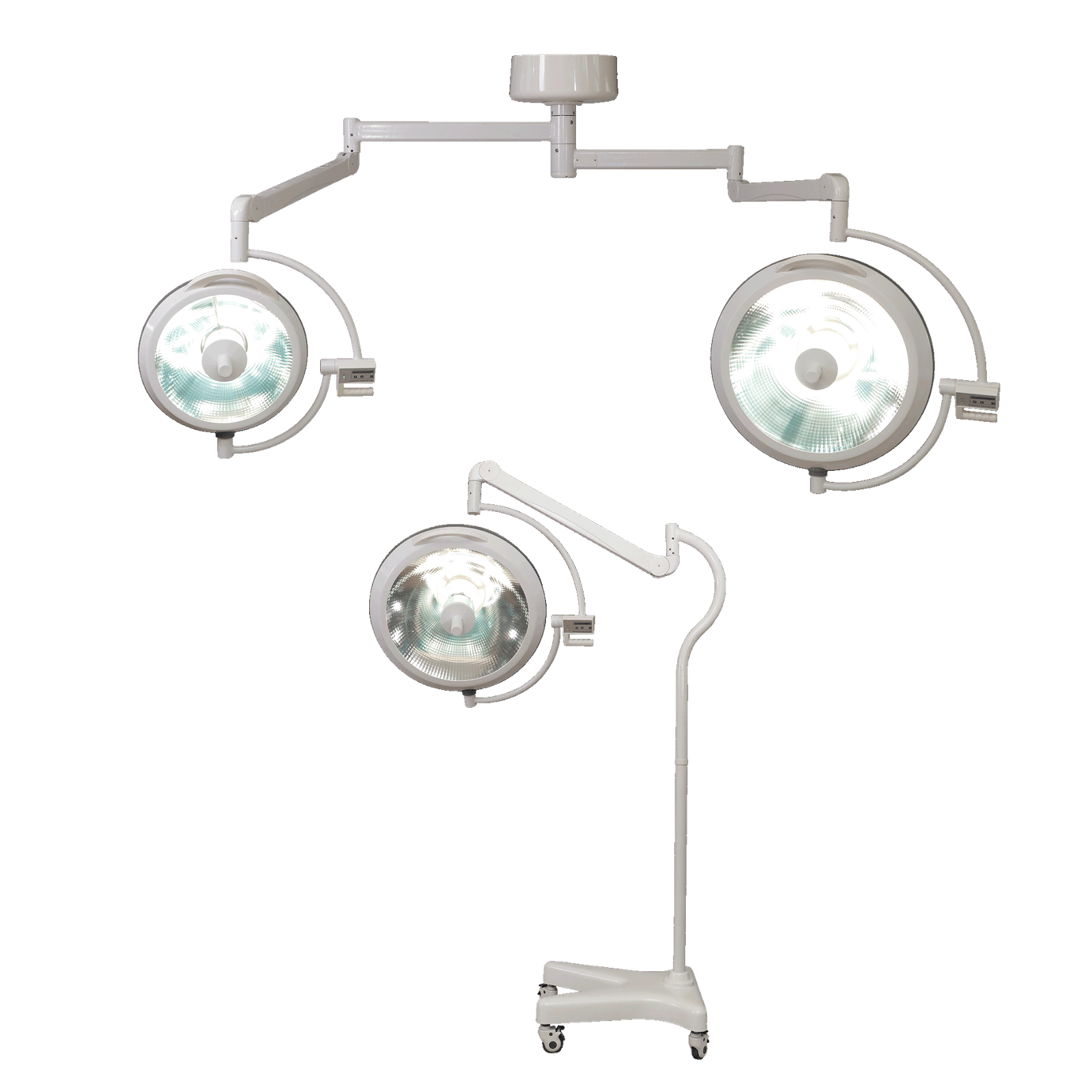

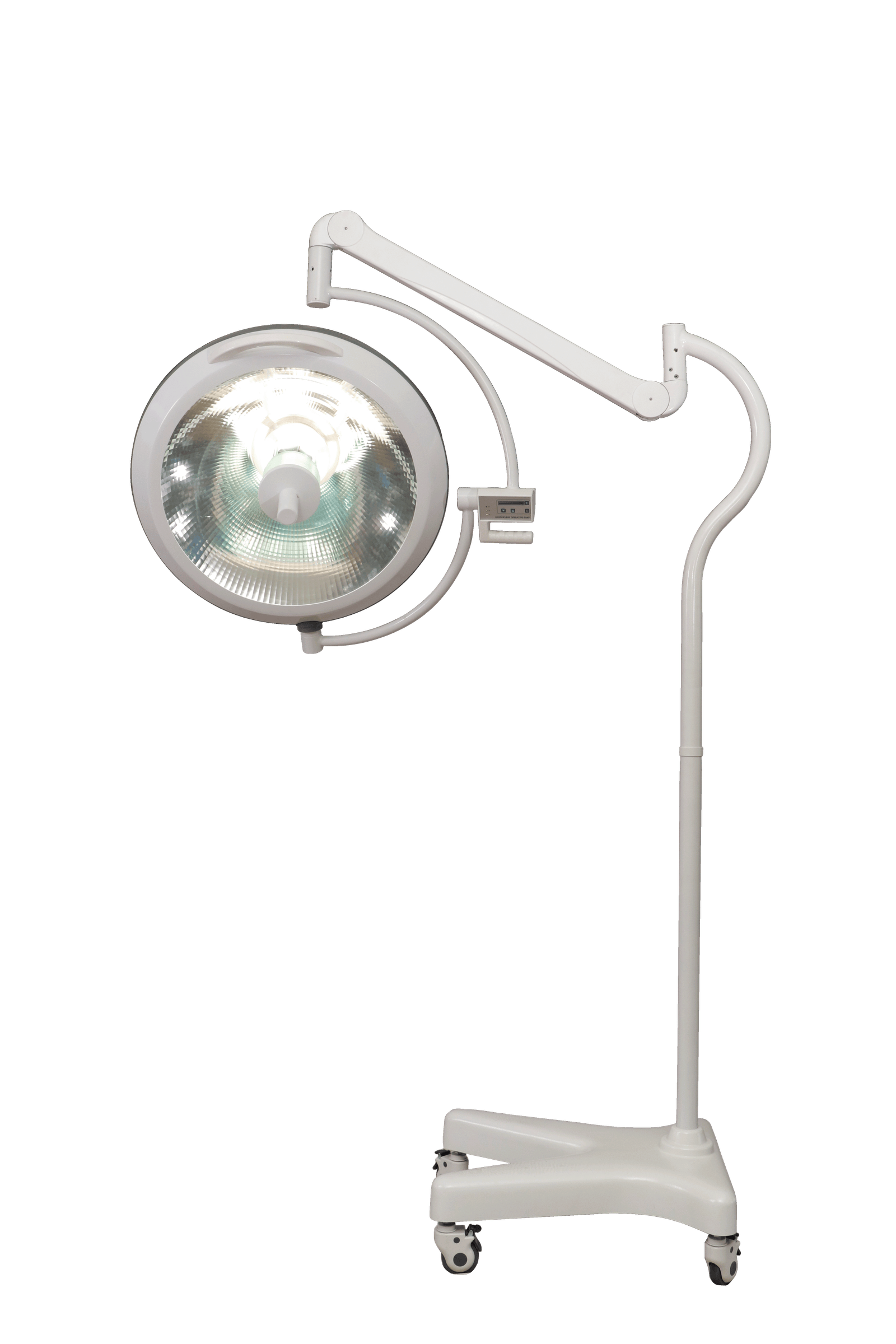

Surgical Shadowless Light (Integral Reflection)

Offer a vast variety of intergral reflection shadowless lamps, featuring from essential series that focus on cost-effectiveness, to advanced surgical series which utilize high reflective material and flexible configuration solutions to build a clearer, more stable, and comfortable shadow-reduced visual environment for you.


Product Description:

Featuring a fully sealed, streamlined housing and a water-coriffugated lamp panel injection-molded from durable PC (polycarbonate) material, this lamp ensures both resilience and hygiene. Its optical system—crafted using CAD/CAM technology into a multi-prism integrated reflector—achieves an illumination depth of up to 1800 mm. Enhanced with color temperature compensation, the lamp delivers superior color rendering and softer, more natural light. These attributes make it particularly suitable for large and complex surgeries, including those in neurosurgery, cardiothoracic, and gynecology departments. It stands as an ideal lighting solution for modern operating rooms.

This integrated reflective shadowless lamp incorporates microprocessor-based digital control, offering eight levels of continuously adjustable brightness and an automatic backup lamp switch—activating the secondary light within 0.2 seconds if the primary fails. It features illuminance memory, wide voltage compatibility (stable operation within AC 100V-240V), and strong anti-interference performance. Equipped with a soft-start mechanism, the lamp provides over 1,000 hours of service life. The detachable handle cover withstands high-temperature sterilization (≤134°C), fully complying with contemporary operating room disinfection and laminar flow standards. A lightweight, professional balance arm system with six universal joints ensures smooth, 360° all-direction positioning, maintaining stability to accommodate various surgical heights and angles.

Technical Specifications:

Parameters Details
Range of illumination (LUX) 8000-160000
Color temperature 4500±250
Diameter of light spot (MM) 150-350
Color rendering index >=85
Depth of illumination (MM) 500-1800
Facular diameter (MM) 160-280
Temperature rise (Doctor head) <2℃
Installation height (MM) 2700-3100
Input voltage AC100~240V 50/60Hz
