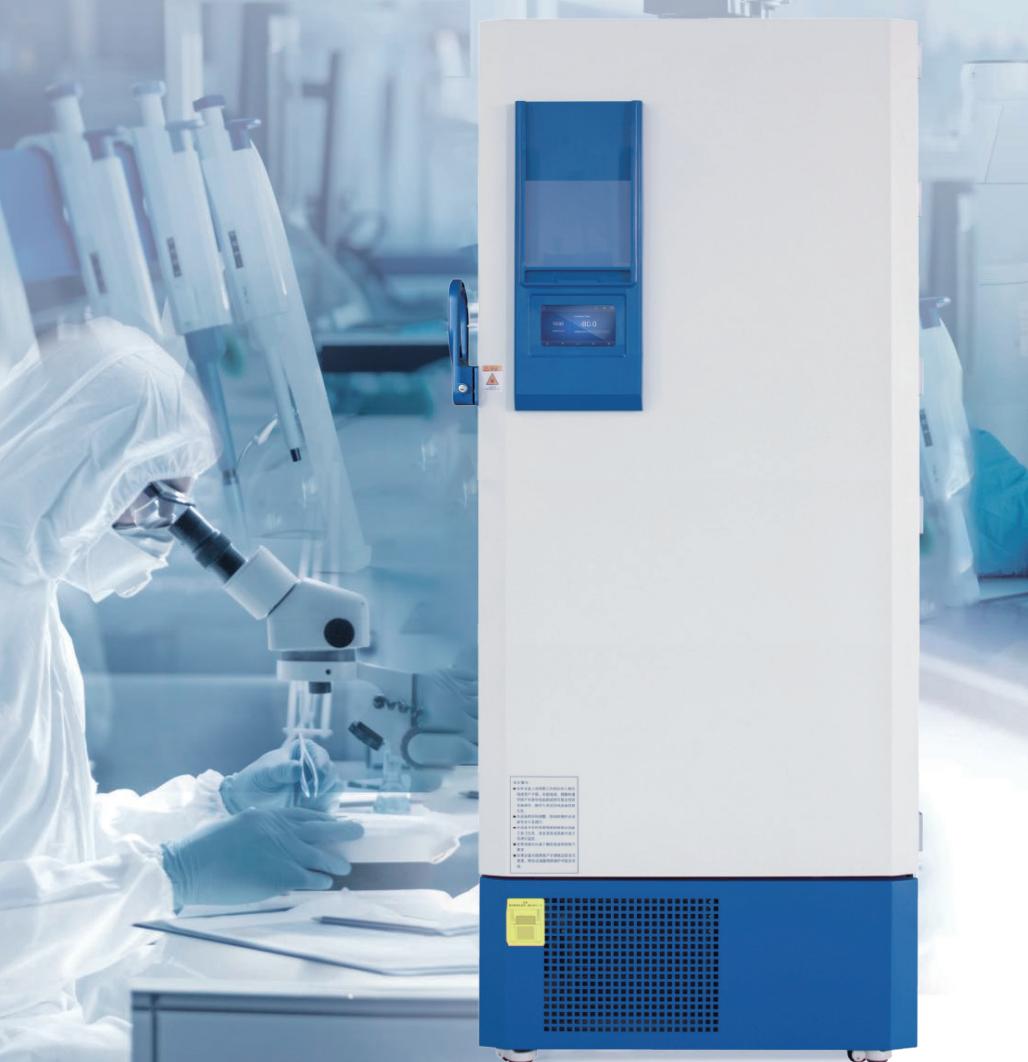

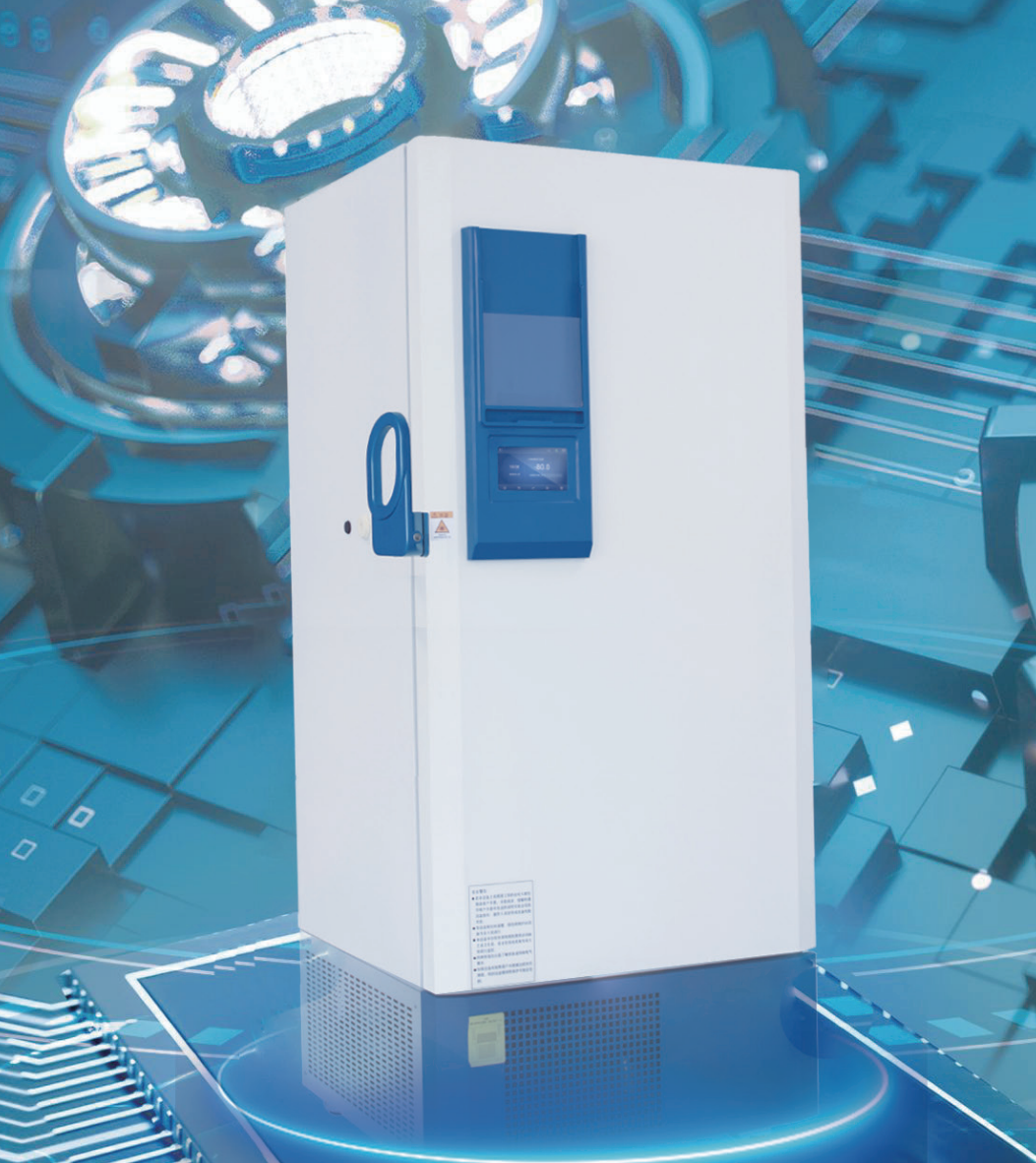

-86℃ Upright Medical Ultra-Low Temperature Freezer

Rayland -86℃ upright medical ultra-low temperature freezer is specifically designed for professional institutions such as hospitals, blood banks, and disease control centers, focusing on the secure storage of temperature-sensitive materials like viruses, blood cells, and biological products, while meeting stringent medical storage standards.

Performance Characteristics	1. Imported brand compressor with hydrocarbon refrigerant (eco-friendly & fast cooling) 2. VIP vacuum insulation board + C-P ultra-fine cell foam (excellent thermal insulation & temperature uniformity) 3. Microcomputer control with 0.1℃ temperature accuracy((wide temperature range: -40℃ to -86℃) 4. Double inner door design (minimizes cold loss & partitioned storage) 5. Operation panel lock + password protection (prevents arbitrary parameter adjustment)
Technical Parameters	Cabinet Type: Upright Cooling Type: Direct cooling Defrost Mode: Manual Refrigerant: Mixed refrigerant Gross Capacity: 350 L Temperature Range: -40℃ to -86℃ Temperature Accuracy: 0.1℃ External Material: High quality coated steel Inner Material: High quality coated steel
Electrical Data	Voltage/Frequency: 220-240V/50Hz Rated Power: 860 W Rated Current: 10.2 A
Dimensions	External Dimensions (W×D×H): 640×870×1976 mm Internal Dimensions (W×D×H): 460×600×1310 mm Packaged External Dimensions: 735×890×2190 mm Net Weight: 215kg Gross Weight: 261kg 40' Container Load: 39 PCS
Alarm Functions	Alarm Types: High/Low Temperature, Door Open, Power Failure, High Condenser Temperature, Sensor Error Alarm Modes: Sound alarm, Light flashing alarm, Remote alarm terminal
Accessories	Shelves: 3 pcs Wheels: 4 lockable casters Pressure Balancing Valve: Yes Temperature Test Hole: Yes

Two Key Advantages:

First, it incorporates an imported compressor paired with eco-friendly hydrocarbon refrigerants, combined with VIP vacuum insulation panels and C-P ultra-fine honeycomb foam technology. This achieves a wide temperature range from -40°C to -86°C with ±0.1°C precision, delivering rapid cooling, uniform internal temperatures, and reduced energy consumption—highlighting precise temperature control and stable performance.
Second, it triggers audible and visual alarms plus remote alerts in the event of temperature anomalies or power outages. The control panel features password-protected locking, while the double-door design minimizes cold air loss and enables zone-specific storage. Start-up delay and shutdown interval functions extend the equipment’s lifespan, balancing practicality and durability with comprehensive multi-layered safety protection.
